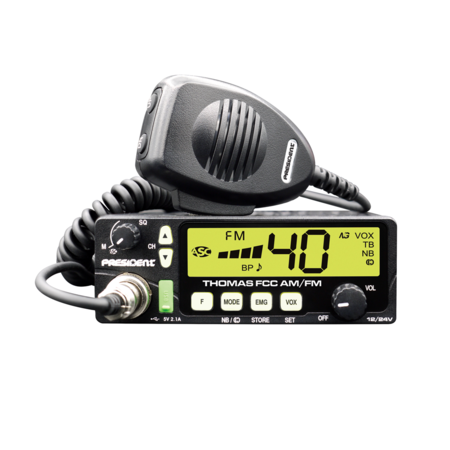

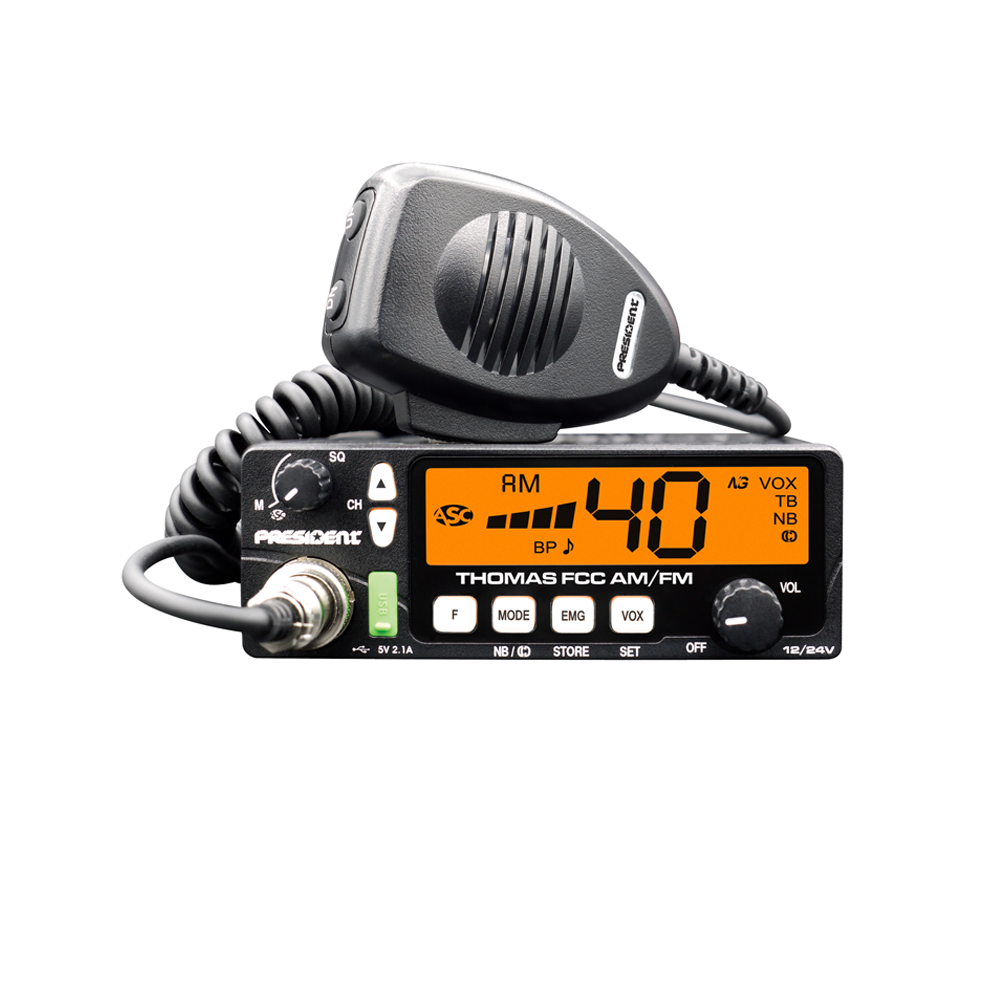

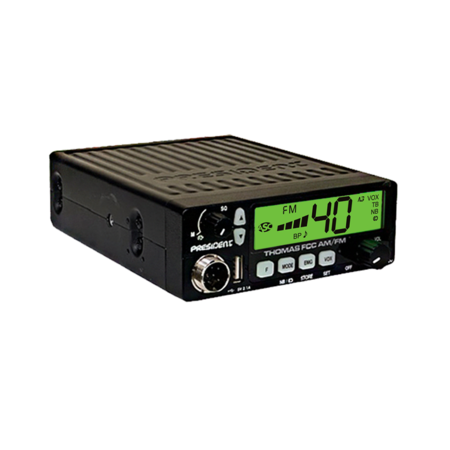

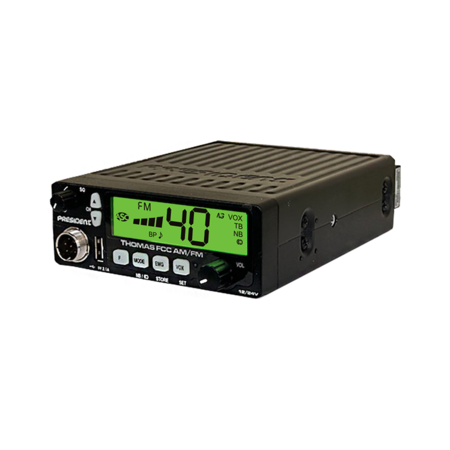

THOMAS FCC

Send to a Friend

Ref.: TXUS093

Now Available

- 40 channels AM / FM
- 12 / 24 V
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- Public Address
- SCAN
- Talkback
- ANL filter, NB
- F function key
- Beep Function
- Roger Beep
- VOX
- Noise Gate
- Mode switch AM / FM
- Preset channel programmable
- TOT (Time out timer)
- Front microphone plug
- External loudspeaker jack

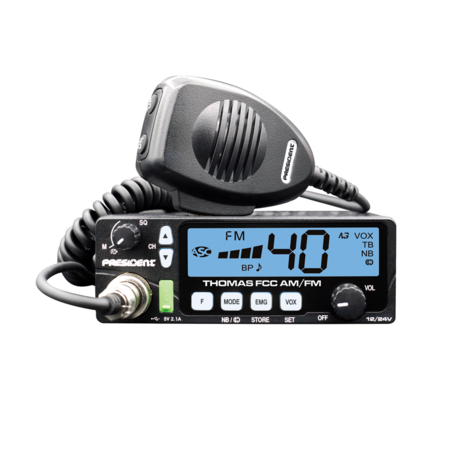

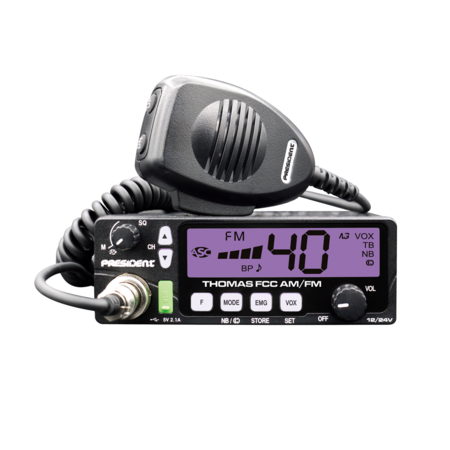

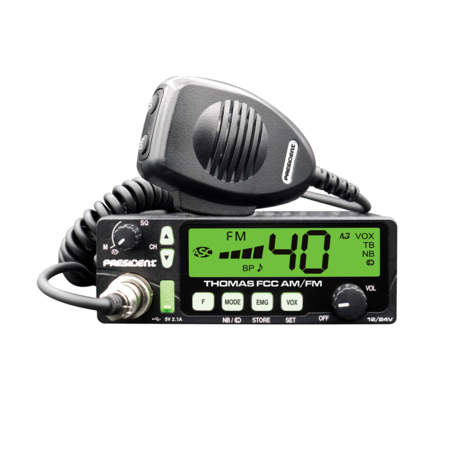

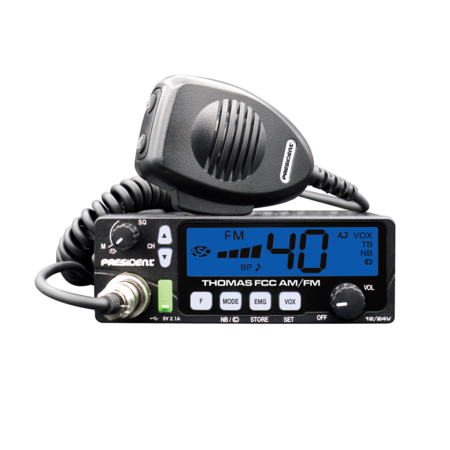

Backlight color:

Minimum Advertised purchase price:

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Supply	:	13.8 V / 27.6 V
Number of channels	:	40
AM	:
FM	:
Channel selector	:	up / down
Volume	:	Volume adjustment and ON/OFF
Squelch	:	Manual squelch
ASC	:
Display	:	LCD multifunction
S-meter	:	Digital
Public address	:
Talkback	:
Vox	:
Filter ANL	:
Filter NB	:
Compander	:
Noise Gate	:
Scan	:
Beep Function	:
Roger beep	:
Preset channel	:	EMG
microphone plug	:	front (6 pins)
External Vox microphone jack	:
External loudspeaker jack	:
Size (W x D x H)	:	4.92 (W) x 6.89 (D) x 1.77 (H) inches / 125 (W) x 175 (D) x 45 (H) mm
Weight	:	~ 1.98 lbs / 0.9 kg

General

Number of channels	:	40
Modulation modes	:	AM / FM
Frequency ranges	:	from 26.965 MHz to 27.405 MHz
Antenna impedance	:	50 ohms
Power supply	:	13.8 V / 27.6 V
Size (W x D x H)	:	4.92 (W) x 6.89 (D) x 1.77 (H) inches / 125 (W) x 175 (D) x 45 (H) mm
Weight	:	~ 1.98 lbs / 0.9 kg

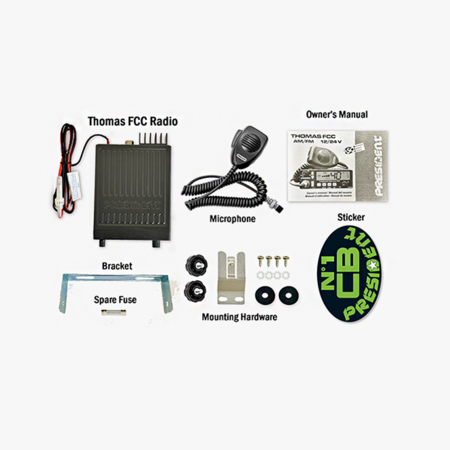

Accessories supplied	:	Ultra light electret microphone with support, mounting cradle, screws
Filter	:	ANL (Automatic Noise Limiter) built-in

Transmission

Frequency allowance	:	+/- 200 Hz
Carrier power	:	4 W AM / 4 W FM
Transmission interference	:	inferior to 4 nW (- 54 dBm)
Audio response	:	300 Hz to 3 KHz
Emitted power in the adj. channel	:	inferior to 20 μW
Microphone sensitivity	:	7 mV
Drain	:	1,7 A at 13,2 V / 0,85 A at 26,4 V
Modulated signal distortion	:	2 %

Reception

Maxi. sensitivity at 20 dB sinad	:	0,5 µV - 113 dBm AM / 0,35 µV - 116 dBm FM
Frequency response	:	300 Hz to 3 kHz
Adjacent channel selectivity	:	> 60 dB
Maximum audio power	:	2.5 W
Squelch sensitivity	:	minimum 0.2 µV - 120 dBm, maximum 1 mV - 47 dBm
Frequency image rejection rate	:	60 dB
Intermediate frequency rej. rate	:	70 dB
Drain	:	160 ~ 420 mA (13,2 V) ;100 ~ 250 mA (26,4 V)
