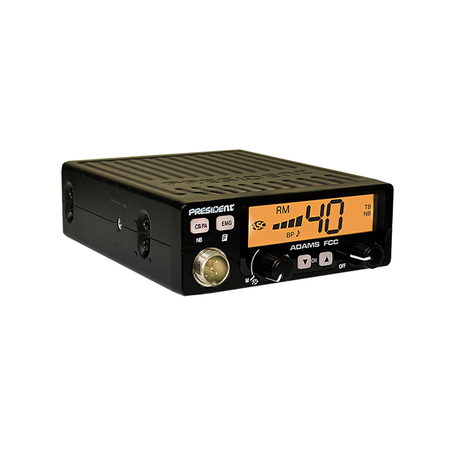

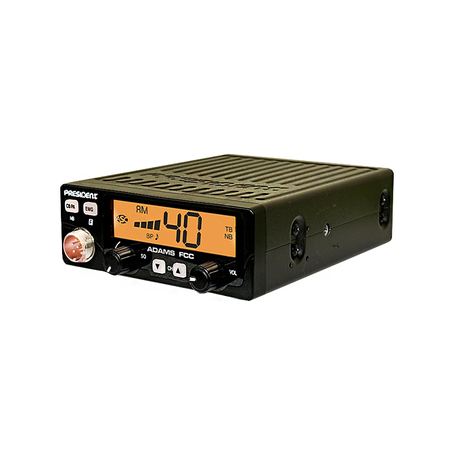

ADAMS FCC
Ref.: TXUS002- 40 channels AM
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- ANL filter , NB
- F function key
- Beep Function
- Roger Beep
- EMG programmable
- Talkback
- Public Address
- Microphone Dynamic / Electret
- Front microphone plug
- External loudspeaker jack
Backlight color:
Minimum Advertised purchase price:
Special Price: US$US$0.00
Regular Price: 0.00 US$
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Supply | : | 13.8 V |
| Number of channels | : | 40 |
| AM | : | |
| Channel selector | : | up / down |
| Volume | : | Volume adjustment and ON/OFF |
| Squelch | : | Manual squelch |
| ASC | : | |
| Display | : | LCD multifunction |
| S-meter | : | Digital |
| Public address | : | |
| Talkback | : | |
| Filter ANL | : | |
| Filter NB | : | |
| Beep Function | : | |
| Roger beep | : | |
| Preset channel | : | EMG |
| microphone plug | : | Front (4 pins) |
| External loudspeaker jack | : | |
| Size (W x D x H) | : | 4.92 (W) x 5.94 (D) x 1.77 (H) inches / 125 (W) x 151 (D) x 45 (H) mm |
| Weight | : | ~ 1.98 lbs / 0.9 kg |
General
| Number of channels | : | 40 |
| Modulation modes | : | AM |
| Frequency ranges | : | from 26.965 MHz to 27.405 MHz |
| Antenna impedance | : | 50 ohms |
| Power supply | : | 13.8 V |
| Size (W x D x H) | : | 4.92 (W) x 5.94 (D) x 1.77 (H) inches / 125 (W) x 151 (D) x 45 (H) mm |
| Weight | : | ~ 1.98 lbs / 0.9 kg |
| Accessories supplied | : | Ultra light electret microphone with support, mounting cradle, screws |
| Filter | : | ANL (Automatic Noise Limiter) built-in |
Transmission
| Frequency allowance | : | +/- 200 Hz |
| Carrier power | : | 4 W |
| Transmission interference | : | inferior to -60 dBc |
| Audio response | : | 300 Hz to 3 KHz |
| Emitted power in the adj. channel | : | inferior to 20 μW |
| Microphone sensitivity | : | 3 mV |
| Drain | : | 2 A |
| Modulated signal distortion | : | 1.8 % |
Reception
| Maxi. sensitivity at 20 dB sinad | : | 0.6 μV - 111 dBm |
| Frequency response | : | 300 Hz to 3 kHz |
| Adjacent channel selectivity | : | > 60 dB |
| Maximum audio power | : | 3 W |
| Squelch sensitivity | : | minimum 0.2 µV - 120 dBm, maximum 1 mV - 47 dBm |
| Frequency image rejection rate | : | 60 dB |
| Intermediate frequency rej. rate | : | 70 dB |
| Drain | : | 160 ~ 500 mA (13.8 V) |
Antennas recommended for this transceiver
ExcellentVery GoodCorrectNot Recommended
Primary rule for best antenna performance: "The longer the antenna, the better the performance." Please consult your dealer for advice.
